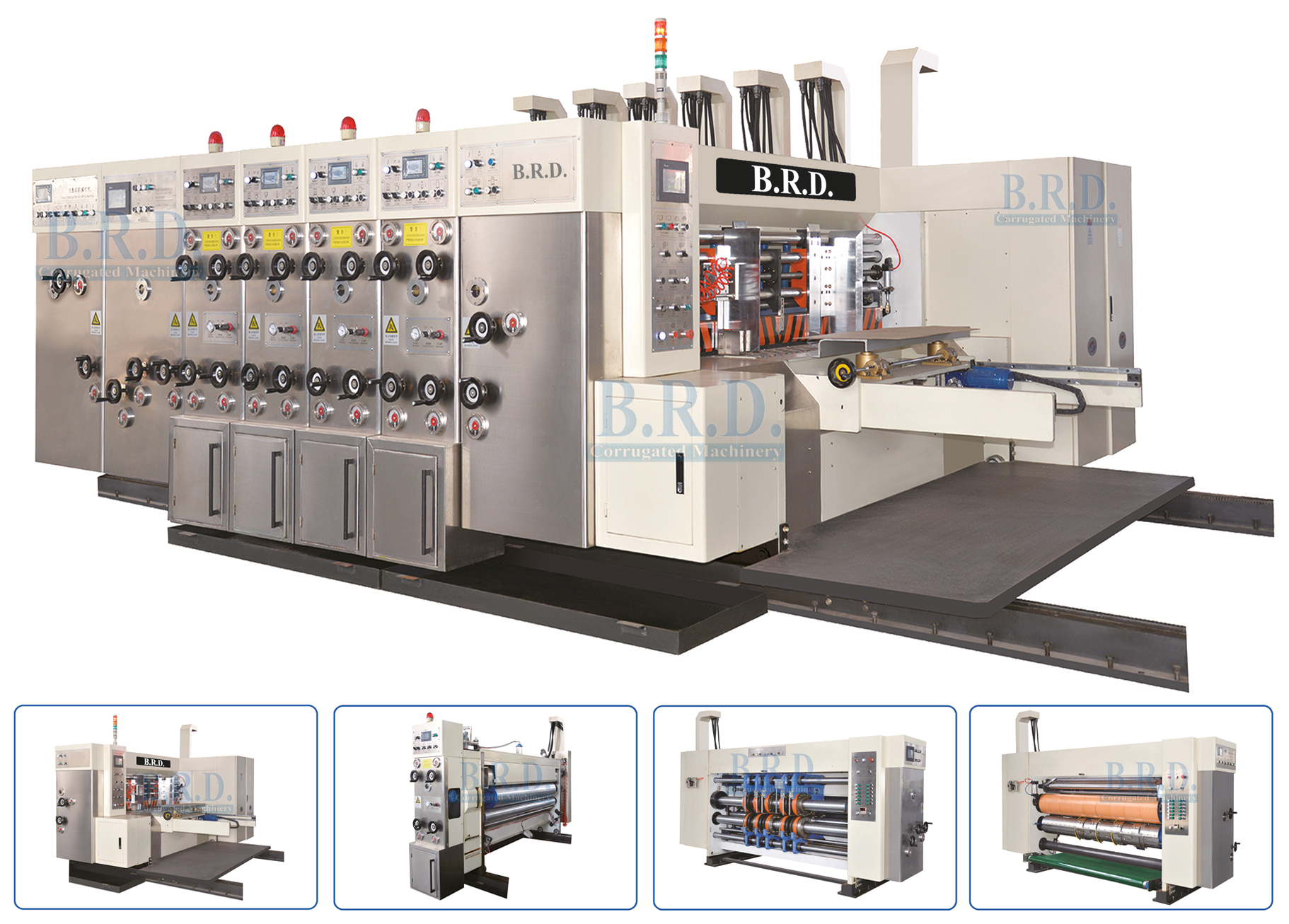

This corrugatted cardboard carton printing machine adopts vacuum adsorption help carrying paper, PLC touch sereen control system. Man-machine conversation, The main machine with frequency conversion motor. 350 phase adjustmentcontrolled by microcomputer, The speed of glue rolls automatically giving. At the same time, it set up the computer program and glue case repaired equipment, feed acrruracy less than 0.5mm, it has many good characteristics such as slicing high precision, high speed, operating easy and soon.
| TECHNICAL PARAMETERS: | |||||||
| Parameter | Unit | 922 | 1224 | 1228 | 1424 | 1428 | |
|---|---|---|---|---|---|---|---|
| Max. Mechanical Speed | pcs/min | 260 | 220 | 220 | 220 | 220 | |
| Economic Printing Speed | pcs/min | 200 | 200 | 200 | 200 | 200 | |
| Max. Size of Paperboard | mm | 950x2300 | 1250x2500 | 1250x2900 | 1400x2500 | 1400x2900 | |
| Min. Size of Paperboard | mm | 270x650 | 370x650 | 370x650 | 400x650 | 400x650 | |
| Min. Space of Slotting | Obverse Knife | mm | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 | |
| Reverse Knife | mm | 260x60x260x60 | 260x60x260x60 | 260x60x260x60 | 260x60x260x60 | ||
| Max.Depth of Slot | mm | 240 | 320 | 320 | 350 | 350 | |
| Skip Feed Size | mm | 1100x2300 | 1500x2500 | 1500x2900 | 1600x2500 | 1600x2900 | |
| Max. Printing Area | mm | 900x2200 | 1200x2400 | 1200x2800 | 1300x2400 | 1300x2800 | |
| Thickness of Standard Printing Plate | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
