Adopt hood suction structure, matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
Install the lifting trolley on the conveyor bridge, Need to use the car will tile roll assembly and presssure roller, such as conveient and quick.
Glue roller unit structure with the overall relocation, Maintenance can sway the machine at the overall maintenance, imporve the wirking efficiency∘
The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry∘
Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
Glue department using integrated slide structure, Glue roller surface after grinding engraved with 25 lines andpit-style textured hard chrome plating.
Corrugated roller adopt tungsten carbide dealing, diameter of the main corrugated roller¢ 320mm, Quenched→rough car→bore fine boring→shaft head shrunk-on→welding→tempering to stress→fine cars→coarse grinding→IF quenching→CNC grinding machine grinding→tungsten carbide dealing, hardness of surface is HRC58 degrees∘
Active force variable frequency motor drive, energy efficient, low failure rate∘
Glue wide electric adjust to changes in the width of paper used∘
Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy∘
Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.

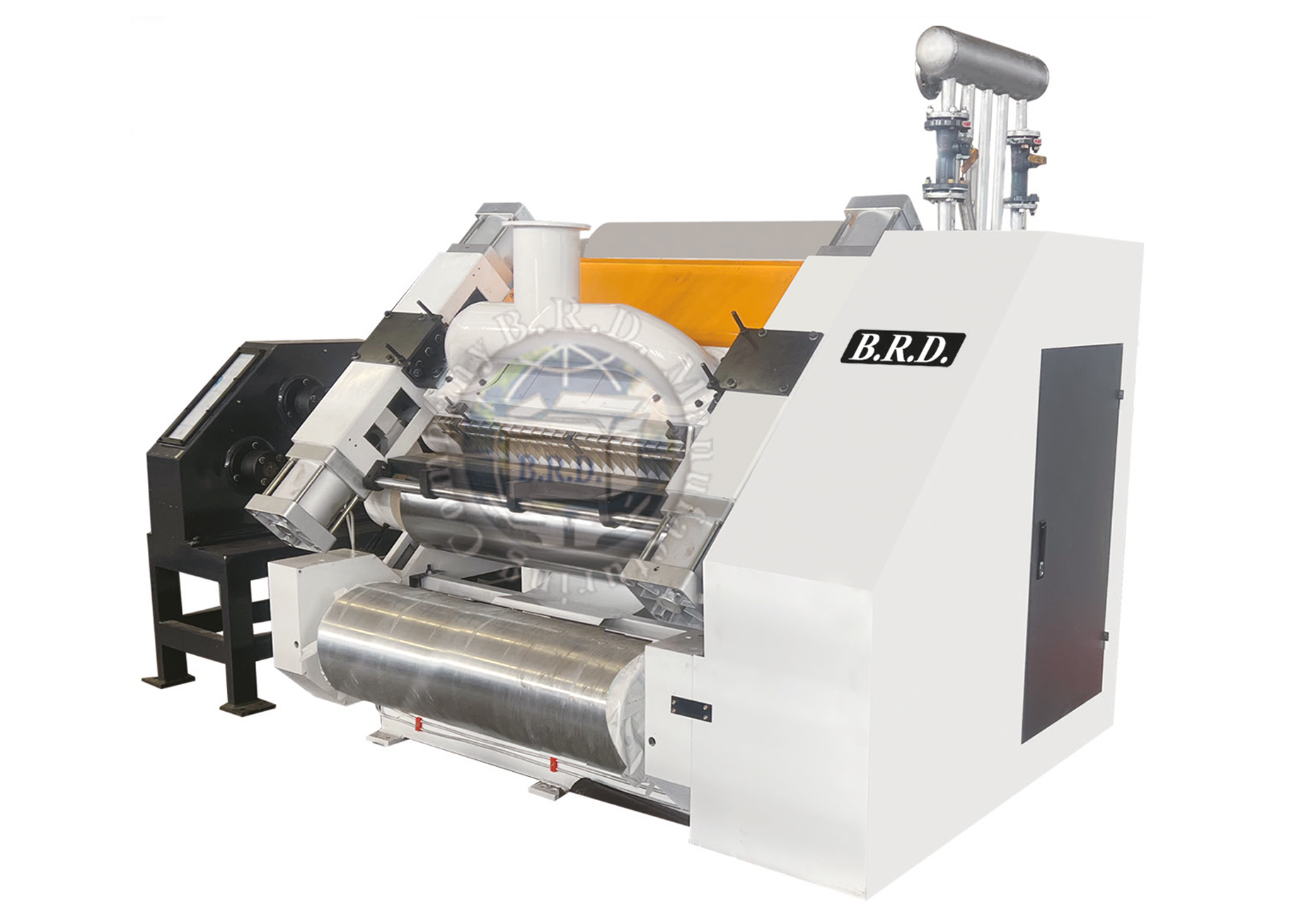

SF-280 Single Facer Machine
ELECTRICAL CHARACTERISTICS:
Adopt vacuum suction structure, with high pressure strong blower. Suction with sliencer. Gas supply and electrical control cabinet to focus on the same operation cabinet, not less that 1.5 meters away from the host, fully enclosed fully enclosed full operation side∘
Base and wallboard cast iron wall, Wallboard thickness 130mm∘ universal Joints∘ plated.
Corrugated roller material adopt 48 Cr Moalloy steel, quenched. Laser hardening, Surface finish, main roll of corrugated diameter¢ 280mm, surface hardness HRC60 degree above∘ The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
Pressure roller ¢ 284mm, surface grinding and chrome-plated: cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices)∘
Pneumatic control glue to glue back, glue roller diameter ¢ 215mm, Engraved polished surface after a 36-line pit style textured machined chrome plated, afterscraping the roller surface polished hard chrome plated.
Corrugated roller, pressure roller materials provided by the Central Plains Steel, High on corrugating unilateral 0.15mm, 0.075mm, high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
Preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm, connecting with metal hose∘

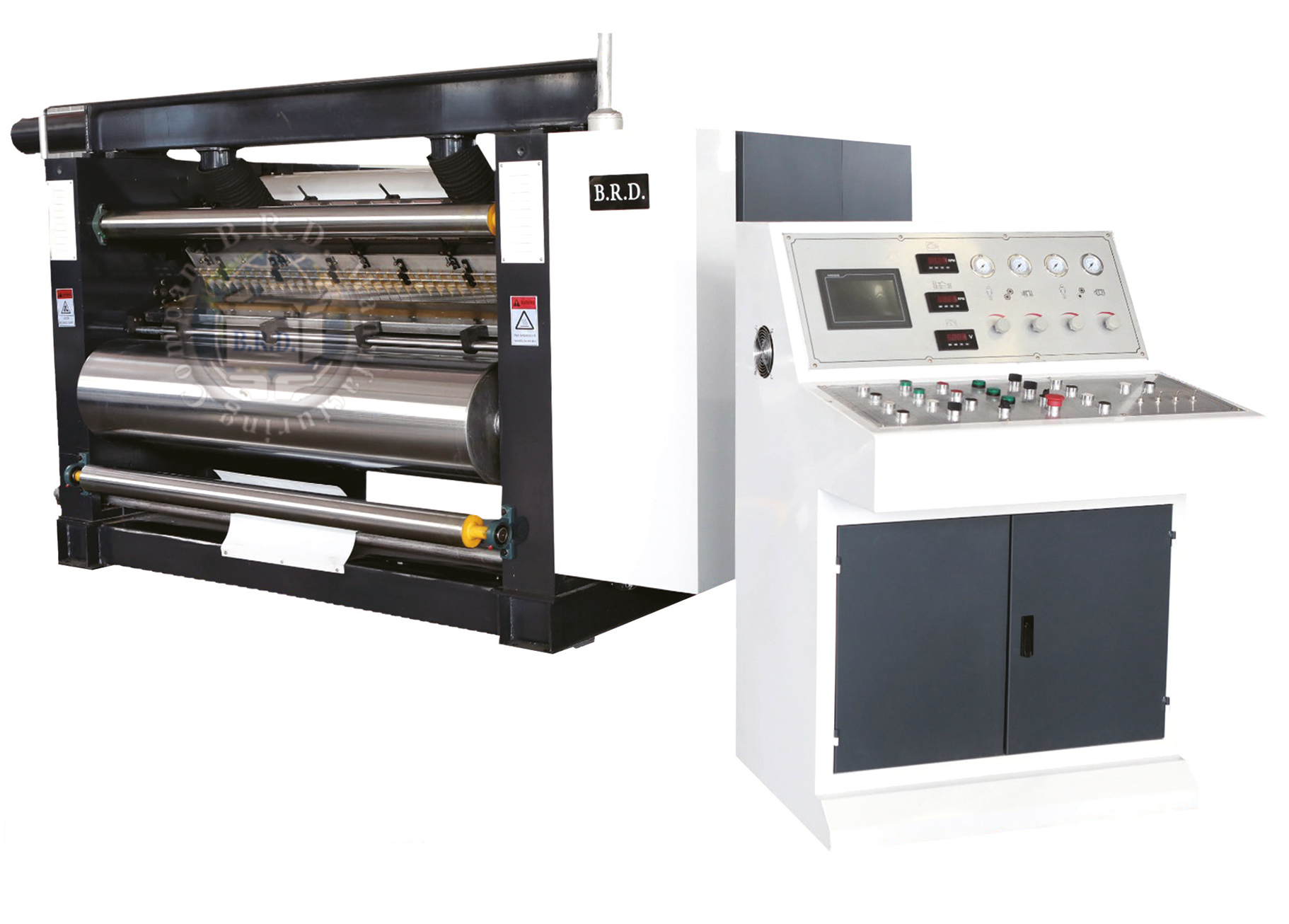

SF-320E/360E/405E Cassette Single Facer Machine
ELECTRICAL CHARACTERISTICS:
Using negative pressure type design, low heat loss, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
Quickly change rollers 10 minutes, while change corrugaated roller with the electric trolley loading, the entire group of corrugating with motor drive, put into the machine, fixed to the machine base, only need a buttons can completed the replacement quckly and easily.
Corrugated roll adopt 48CrMo high quality alloy steel, dealing with heating, after grinding hard crome plating surface treatment∘
Corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect∘
Glue volume control with electric adjustment, rubber septum electric device, the glue system can operate independently when the motor stops, prevent glue exhausted∘
The moveable type glue unit is convenient to clean and maintain
Easy operation control system, touch screen operation interface, Drawing with color display operating status, function selection, fault indication, and parameter srttings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running dmoothly∘
