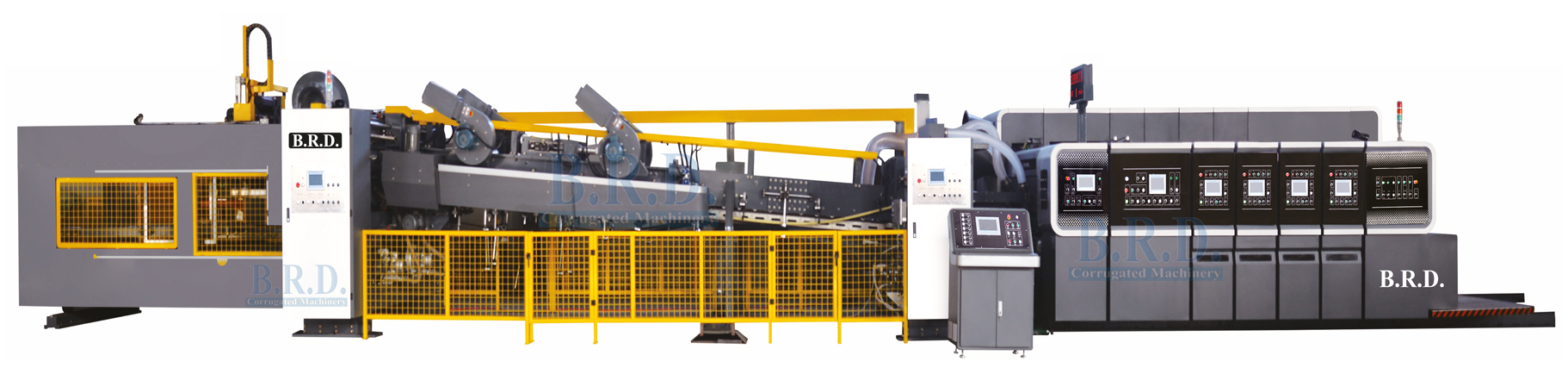

High-Speed (FFG) Flexo Folder Gluer CASE MAKER

Control System

• Whole machine can connect to internet and be remote network monitoring.
• PLC inline control, fast and convenient order adjusting.
• Failure monitoring system, when have error machine warning and stop.
• All machine PLC, Touch scree, contactor and frequency inverter adopt siemens brand.

Board Feed Unit

• Elastic transmission wheels device, upper and lower belt clamping transmission.
• Blower, brush and electric roll type brush can sweep off the waste paper.

Pill Counting and Out-transport Unit

• Falling type collection system, effectively protect printing surface from damaging high production adaptability.
• High frequency box correction pusher system, blower assisted paper drop, circulation transmission.
• Multi-servo drive high speed counting and stacking collection system, efficient guarantee.
• Conveyor belt output, servo control the output belt, paper pressing wheels assistance, paper transfer out clearance electric adjustment.
• Transversal movement electric adjustment of counting output unit.

Glue System

• Valco or HHS brand glue supply system, made in USA, glue supply amount can adjust accord the machine speed, glue given legth can be adjust by computer, save glue water, increase pasting strength.

Fold Unit

• Extended high strength folding box bridge beam to ensure box folding accuracy and highspeed stability.
• Adopt screw shaft and linear guide rail synchronous traverse system, and the middle high-strength type bridge group support makes stable and accurate displacement.
• Elastic guiderail pressing wheels system can control the gaps, effectively solve the paper blockage problem during transferring less corrugate board strength and thickness damage.
• Rear adsorption belt transmission, independent motor deviation correction device on both sides, effctive correction fold result.
• Multiple shaping wheels with clamp belt to guarantee the fold result, no fishtaill and small flap side slotting width different.
