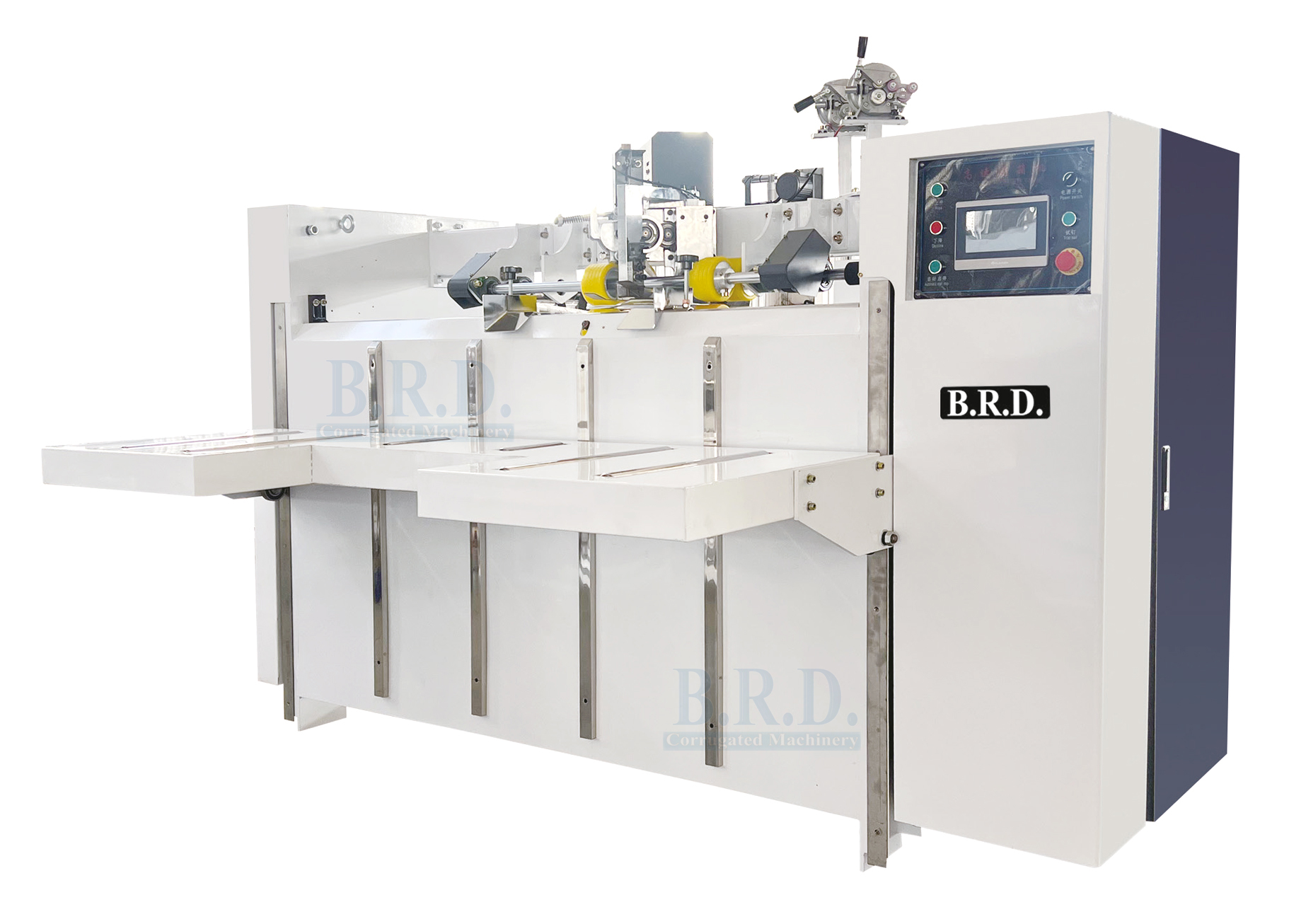

Semi Automatic Single Piece Stitcher Machine

STRUCTURAL CHARACTERISTICS:

Change size in a minute.
Simple operation without experience
CAn single screw, twin screw, strengthen nails.
Paper automatic counting, then bundle and sent out, convenient.
Touch screen control.
The stitching distance can be set directly on the touch screen.
Can directly adjust the thickness of the cardboard.

Semi Automatic Single Piece Stitcher Machine

TECHNICAL PARAMETERS:
		Max. (L+W)x2	2460mm	Length of machine	2800mm
		Min. (L+W)x2	606mm	Width of machine	2600mm
		Max. (W+H)	1515mm	weight	1700kgs
		Min. (W+H)	300mm	Speed	400 Nails/min
		Hight of feeder	900mm	Nails distance	30-120mm
		Power	6HP	Nails NO.	1-99 nails
		Machine size	2.8x2.7x2 m

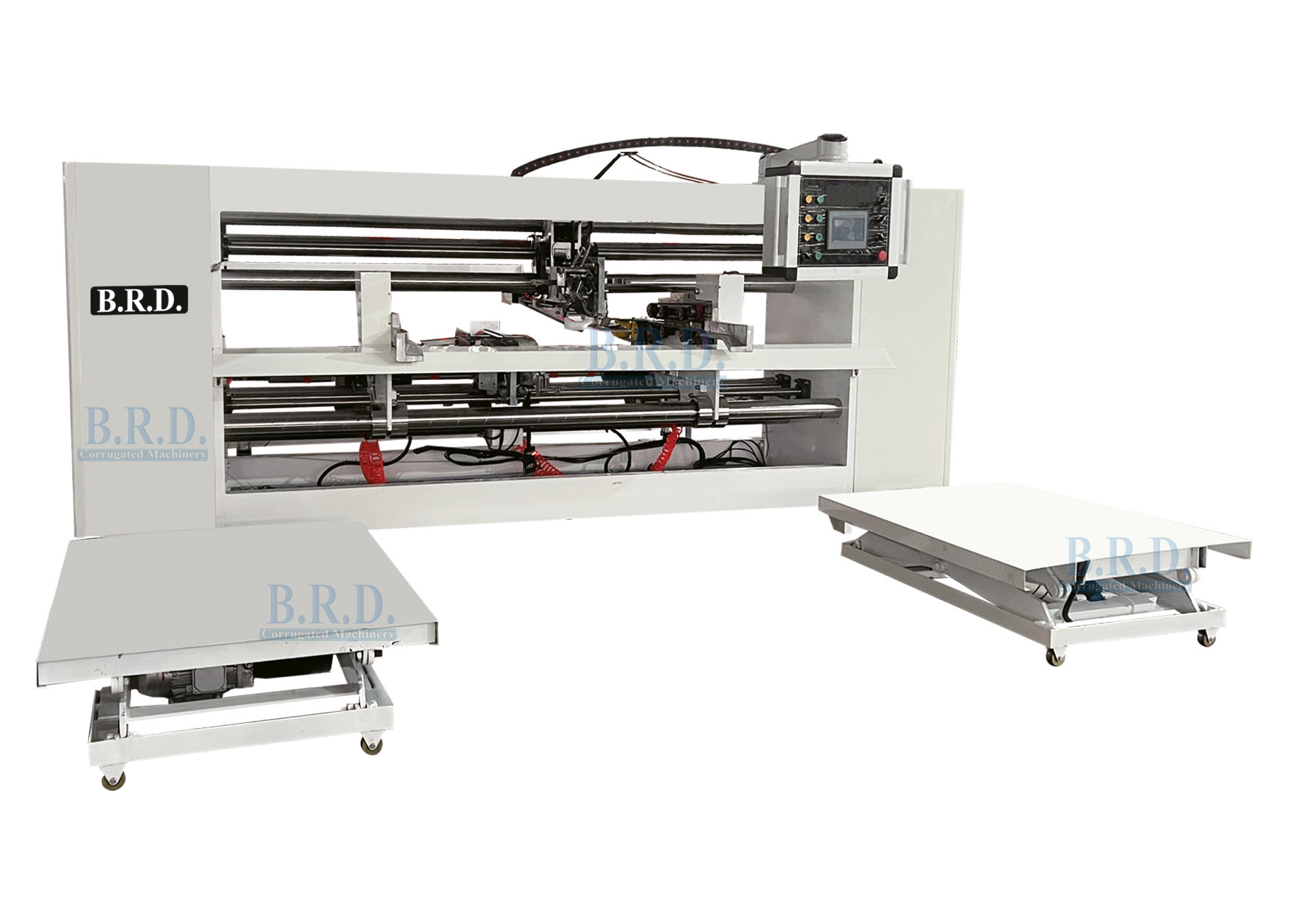

Semi Automatic Double Pieces Carton Box Stitcher Machine

Semi Automatic Double Pieces Carton Box Stitcher Machine

TECHNICAL PARAMETERS:
Parameter		BDJ-2200	BDJ-3000	BDJ-3500
Max Paper size (A+B)X2 (mm)		3400	5000	6000
Min Paper size (A+B)X2 (mm)		980	980	980
Max Carton length A (mm)		1560	2320	2820
Min Carton length A (mm)		350	350	360
Max Carton length B (mm)		900	1300	1550
Min Carton length B (mm)		140	140	140
Maximum carton height		2500	2500	2500
Minimum carton height		400	400	400
Maximum rocket size		600	600	600
Minimum shake cap size		50	50	50
Maximum altitude		2000	2000	2000
Minimum height		150	180	180
Maximum nail tongue width		40	40	40
Pitch		10-120	10-120	10-120
Nail number		1-99	1-99	1-99
Nail speed (times/min)		800	800	800
Machine weight		2.8	3.5	4.0

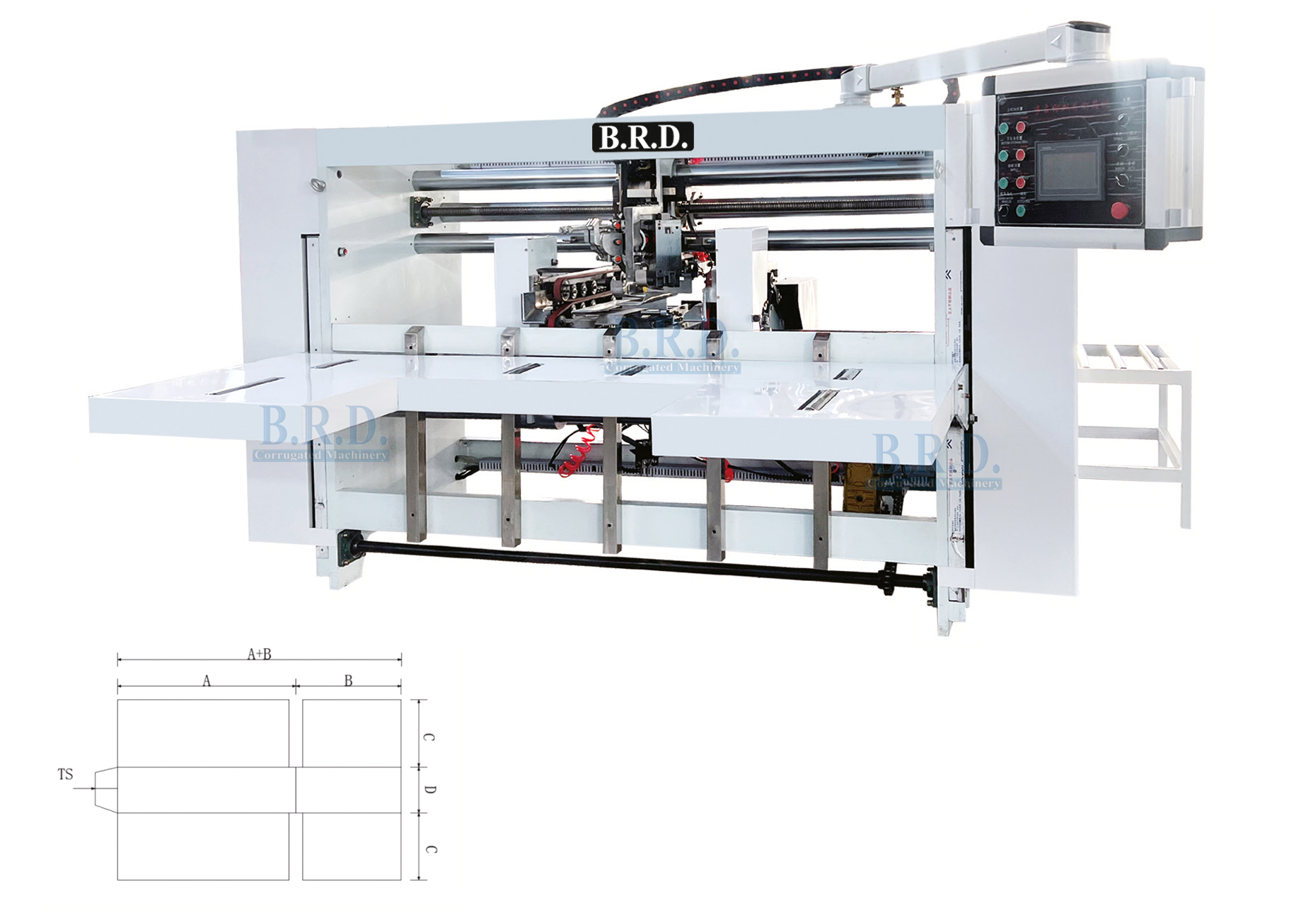

Semi Automatic Double Pieces Carton Box Stitcher Machine

Semi Automatic Double Pieces Carton Box Stitcher Machine

TECHNICAL PARAMETERS:
Parameter		BDJ-4000	BDJ-4500	BDJ-5000
Max Paper size (A+B)X2 (mm)		7000	8000	9000
Min Paper size (A+B)X2 (mm)		980	980	980
Max Carton length A (mm)		2320	3820	4320
Min Carton length A (mm)		350	350	360
Max Carton width B (mm)		1800	2050	2300
Min Carton width B (mm)		180	180	180
Maximum carton height		2500	2500	2500
Minimum carton height		400	400	400
Maximum rocket size		600	600	600
Minimum shake cap size		50	50	50
Maximum altitude		2000	2000	2000
Minimum height		180	180	180
Maximum nail tongue width		40	40	40
Pitch		10-120	10-120	10-120
Nail number		1-99	1-99	1-99
Nail speed (times/min)		800	800	800
Machine weight		4.5	5	5.5
