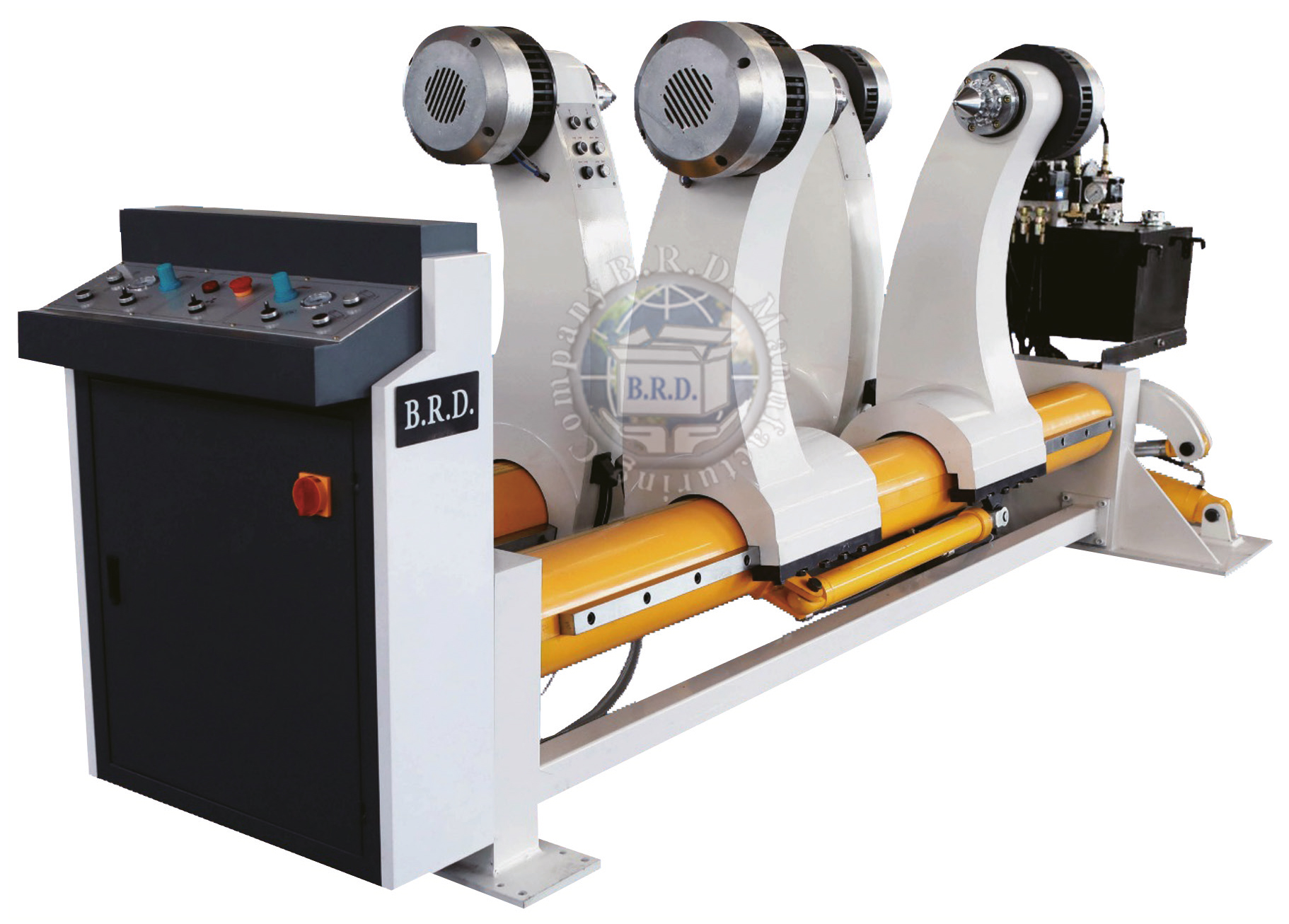

It adopts a double-tube symmetrical four-arm structure, which can support two rolls of raw paper at the same time.
Through hydraulic transmission, the clamping, lifting, and deviation correction of paper rools are realized.
Multi-point brakes or manual tension brakes are used at the end of the tip, and to other chucks are used at the tip to reduce paper waste.
Base paper width from 1200mm to 2800mm, support base paper diameter 1500mm.
Maximum weight: V5B:2.5T, V6B: 3.5T. Spindle diameter: ∅242mm, ∅270mm.
ELECTRICAL CHARACTERISTICS:
Symmetrical structure can also install two bundles of paper at the same time, Paper can be used for non-stop for a job;
Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car; paper guide the use of channel 14 and the guide post weld, paper car adopt 10mm welded steel, the length of track is 4500mm∘
Manual dics brake, add screw following Electric elements centralized control the electric elements, expand chuck∘
