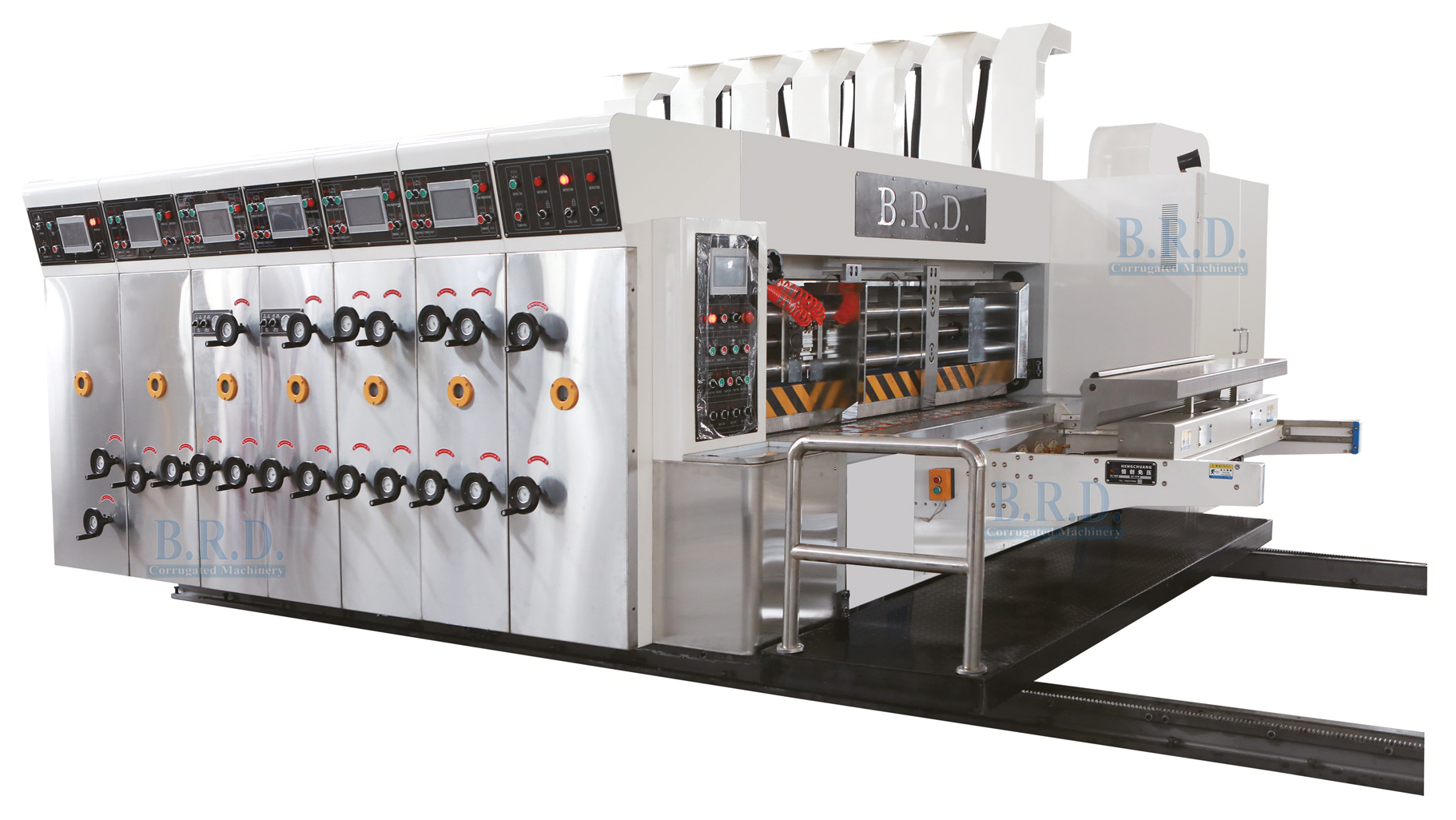

High Speed Printing Slotting Rotary Die Cutting Machine

STRUCTURAL CHARACTERISTICS:

Whole wallboard and important components adopts aging treatment, eliminates the metal internal stress;
Adopt high precision machining center CNC grinding machine for grinding processing;
Machine transmission parts adopts a free key connection, the connection eliminates clearance;
The machine drive bearing important driving parts adopt heavy duty self-aligning bearing, simple maintenance long service life
The machine adoptes adjustment preset function speeding printing slotting die-cutting, automatic zero resetting.

TECHNICAL PARAMETERS:
Color group	To be configured according to user's needs
Printing paper	A,B,C,AVB,B/C and AvB/C type corrugated paperboard (the maximum interval 11mm)
Width of machine inside	2200mm	2600mm	2800mm
Max. paper size	900x2000mm	1200x2400mm	1400x2600mm
Max. printing size	9000x1800mm	1200x2200mm	1400x2400mm
Skip feeding paper	1100x2000mm	1400x2400mm	1600x2600mm
Positive knife	300x640mm	350x720mm	400x720mm
Negative knife	300x720mm	350x740mm	400x740mm
Printing plate thickness	7.2mm	7.2mm	7.2mm
Design speed (piece/min)	200pcs/min	180pcs/min	150pcs/min
Economic speed (piece/min)	80-180pcs/min	80-160pcs/min	80-130pcs/min
Tinted precision	4(color)+0.5mm	4(color)+0.5mm	4(color)+0.5mm
Slotting precision	+1.5mm	+1.5mm	+1.5mm
Max. slotting depth	7x220mm	7x300mm	7x350mm
Max. slotting depth	increase the blade, increase the slot depth
Positive knife	150x150x150x150	170x170x170x170	170x170x170x170
Negative knife	250x90x250x90	250x90x250x90	260x90x260x90
Max. die-cutting size	900x1900mm	1200x2300mm	1400x2500mm
Printing plate diameter (contain plate thickness)	∅300mm	∅405mm	∅480mm
