Synchronous servo motor control row of knives, cable, Automatic reset. Precise dimensions. Change order time 3-8 seconds, the two machines can be achieved with no slow down immediately for a single memory of 999 order, non-stop automatic change order or manual change order can be realized.
Schneider M258PLC control system, usung can open line system, with order management capabilities, with the dryer speed synchronous signal input.
HMI with 10.4-inch color touch screen, storage 999 orders, change orders automaticlly or manually for a single fault alarm.
Three kinds of pressure line forms: Convex against the concave (three layers line), Convex against the concave (five layers line), Convex against Flat, Three kinds of electric pressure line forms can be converted∘ Crimping round shades by computer control, linear, and easy to bend.
Using thin tungsten alloy steel knife, sharp blade, long life of more than 8million meters.
Knife sharpener for computer control, automatic or manual knife sharpener.
Cutting edge sharpening can be divided, improve productivity Efficiency. Imported synchronous drive system, precision accurate, long life, low noise operation∘

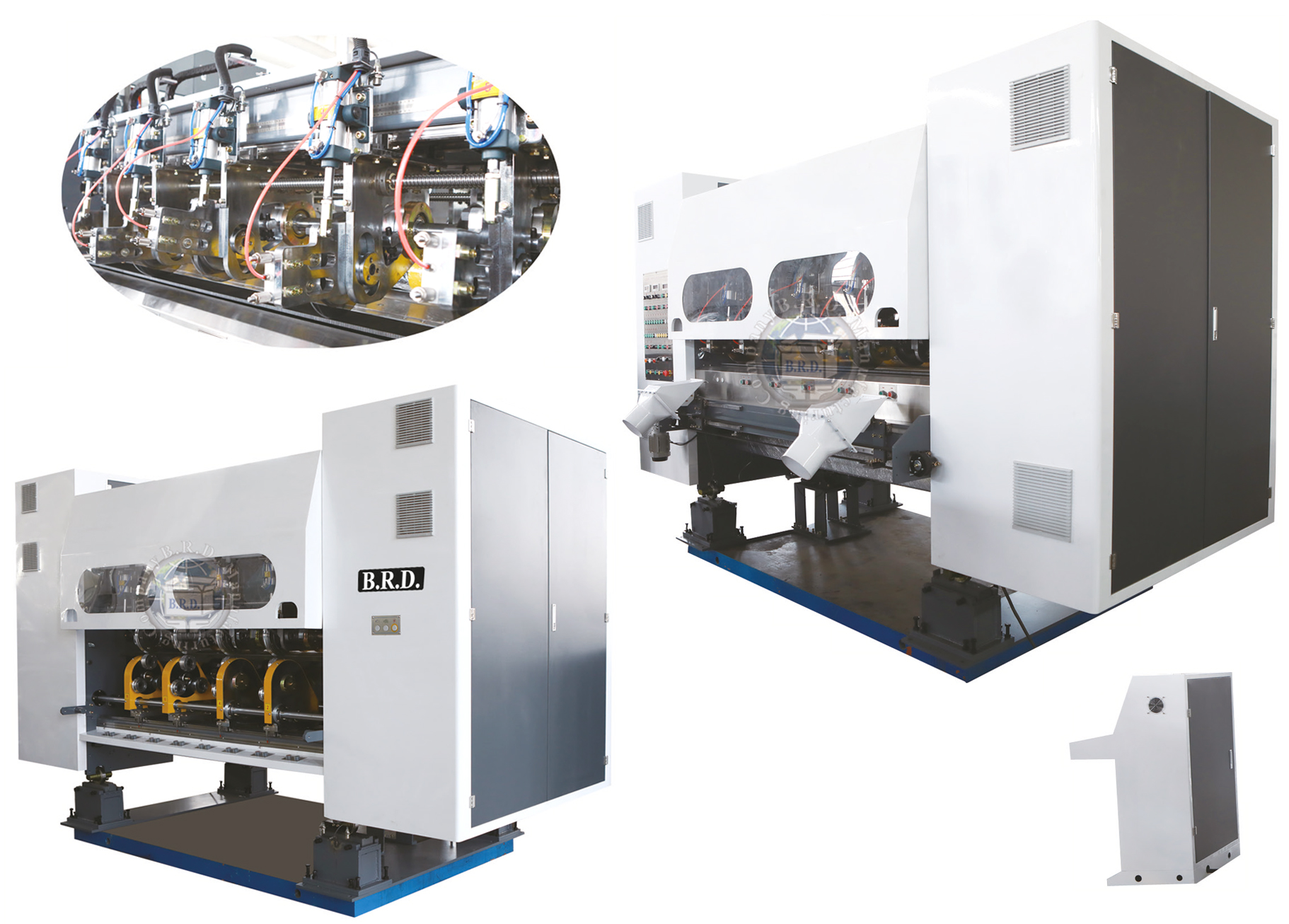

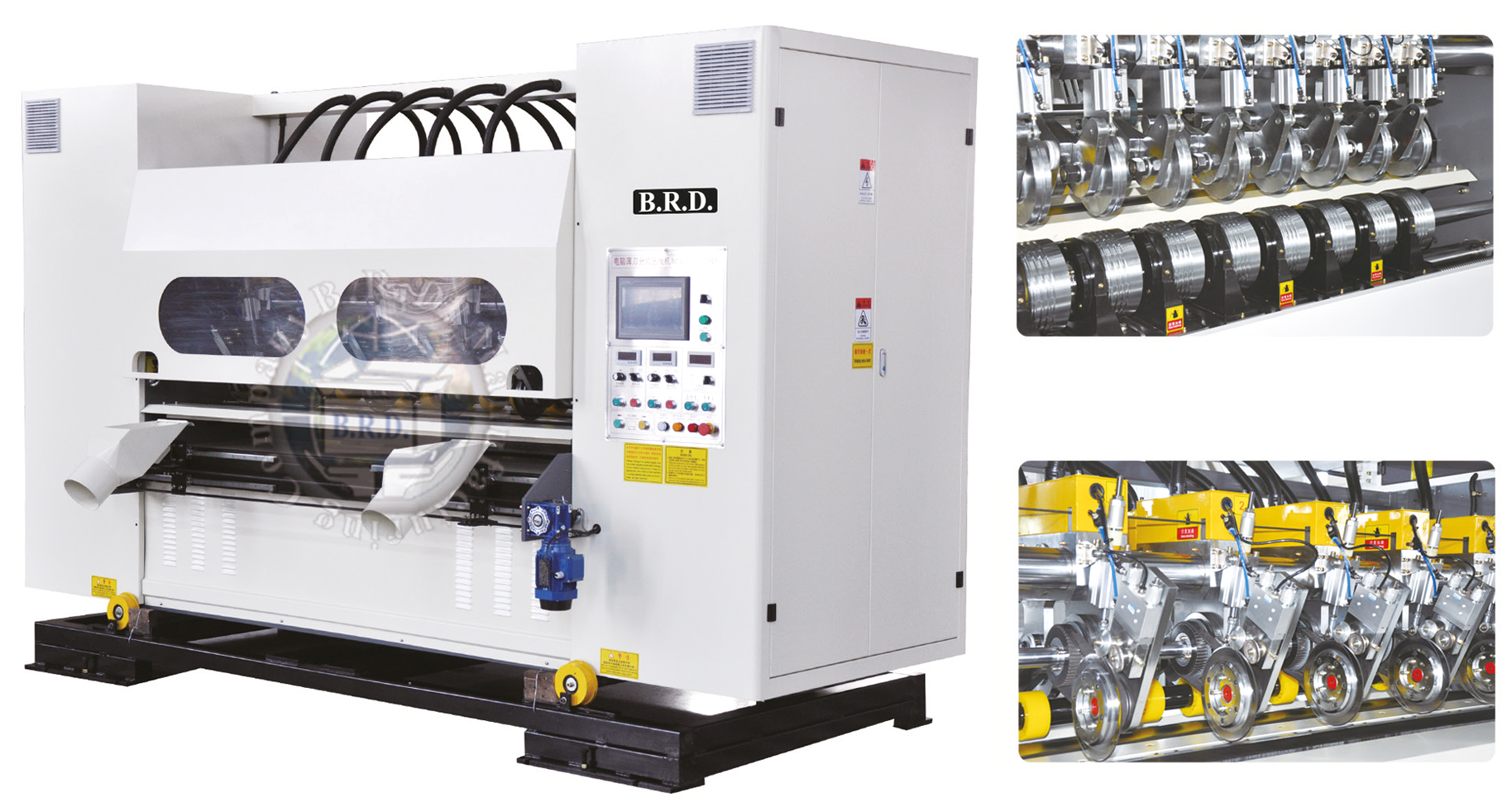

Thin Blade Slitter Scorer (Computerized)
ELECTRICAL CHARACTERISTICS:
High quality imported industry computer and PLC eqipped composing the CNC system.
A memory 0f 999 orders.
Non-stop change over or manual change over can be realized.
Automatic synchronize with the whole ine and can also get inline with manufacture management system high compatibility.
Thin tungsten steel alloy blade, sharp and long life of over 8 milion meters Computer controlled auto grinding and manual grinding also applicable.

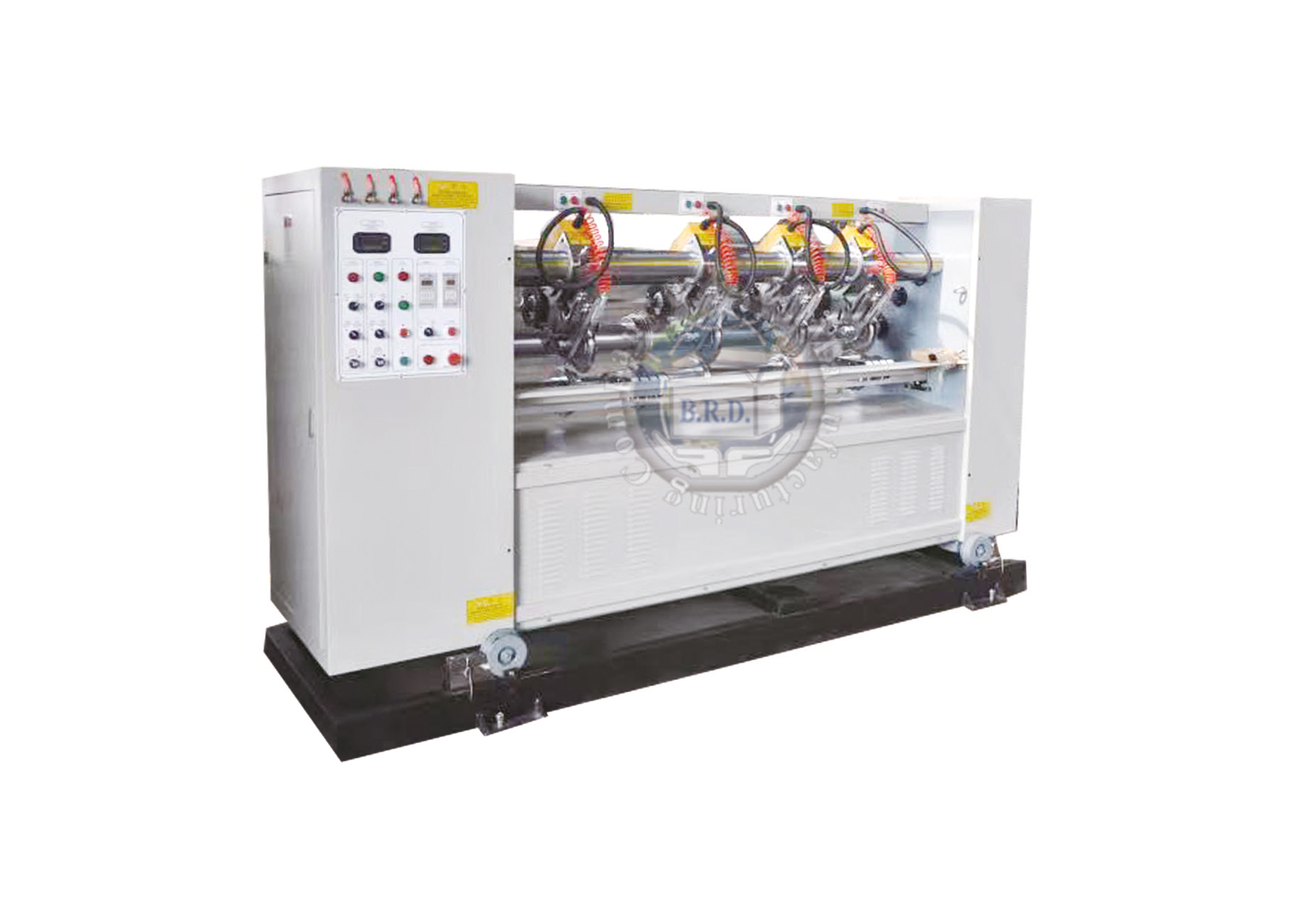

Electric Slitter Scorer Machine
ELECTRICAL CHARACTERISTICS:
Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved signficantly∘
The whole machine can remove left and right, cycloid reducer to adjust∘
Cutter and easy to adjust the pressure line, the error ⩲0.5mm, automatic sharpening device, with intermittent brothers and other features.
The machine adopt five knives eight lines, the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters∘
