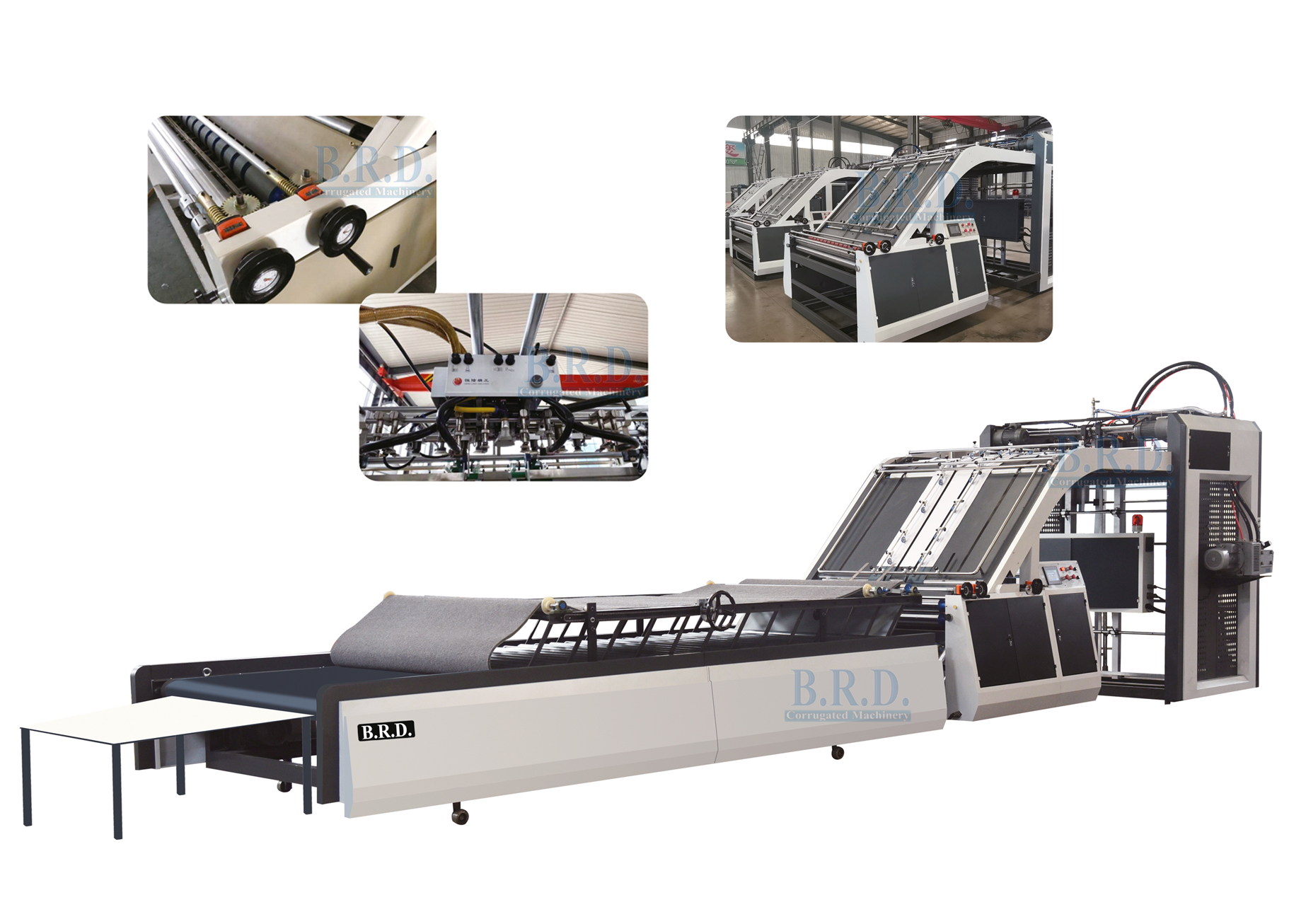

High Speed Full Automatic Flute Laminating Machine
STRUCTURAL CHARACTERISTICS:
Suitable for laminating of cardboard and corrugated cardboard in 150-400 g/m2.
The vacuum suction-type feeding system can lead the paper accurately into the machine; cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatictracking.
The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
Machine uses touchscreen/PLC/servo motor control system, double frequency control type, the circuit system is stable, and can automatically display the failure alarm.
Automatic gluing, and the glue can be used circulatory, avoid glue waste. Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
Pressure rollers adopt unilateral adjustment, convenient and fast.
Claning type: bottom roller is extruded by rubber roller to clear the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper. Make glue etc. foreign matter after washing direct subside in tank. At the same time, adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash.
The pressure conveyor adopt floating movable structure, total lenght 5m, equipped with 28 paper pressing rollers, make the cardboard uniform bearing strenght in pressing process.
Counter designs scientifically, easy recording the amount you have been worked. Small pressure table (optional), lenght 2.5m, big pressure table lenght 5m.
